Nama : Esi Novita Sari
|
VLAN TRUNK
|
Tanggal : 17/2/2017
|
|
Kelas : XII TKJ 3
|
SK/KD : -
|
|
|
No. JobSheet :27
|
Guru Produktif : Pak,Suyatno
|
1. TOPOLOGY
Langkah-Langkah Konfigurasi Vlan Trunk seperti di bawah ini.
Konfigurasi Switch Nya :
Switch Pertama
Switch>enable
Switch#configure terminal
Enter configuration commands, one per
line. End with CNTL/Z.
Switch(config)#vlan 100
Switch(config-vlan)#name Guru
Switch(config-vlan)#exit
Switch(config)#vlan 200
Switch(config-vlan)#name Siswa
Switch(config-vlan)#exit
Switch(config)#interface
FastEthernet0/1
Switch(config-if)#switchport access
vlan 100
Switch(config-if)#exit
Switch(config)#interface
FastEthernet0/2
Switch(config-if)#switchport access
vlan 100
Switch(config-if)#exit
Switch(config)#interface
FastEthernet0/3
Switch(config-if)#switchport access
vlan 200
Switch(config-if)#exit
Switch(config)#interface
FastEthernet0/4
Switch(config-if)#switchport access
vlan 200
Switch(config-if)#exit
Switch(config)#interface
FastEthernet0/5
Switch(config-if)#switchport mode
trunk
%LINEPROTO-5-UPDOWN: Line protocol
on Interface FastEthernet0/5, changed state to down
%LINEPROTO-5-UPDOWN: Line protocol
on Interface FastEthernet0/5, changed state to up
Switch(config-if)#exit
Switch(config)#do wr
Building configuration...
[OK]
Switch(config)#
Switch kedua
Switch>enable
Switch#configure
terminal
Enter configuration
commands, one per line. End with CNTL/Z.
Switch(config)#vlan 100
Switch(config-vlan)#name
Guru
Switch(config-vlan)#exit
Switch(config)#vlan 200
Switch(config-vlan)#name
Siswa
Switch(config-vlan)#exit
Switch(config)#interface
FastEthernet0/1
%LINEPROTO-5-UPDOWN:
Line protocol on Interface FastEthernet0/5, changed state to down
%LINEPROTO-5-UPDOWN:
Line protocol on Interface FastEthernet0/5, changed state to up
Switch(config-if)#switchport
access vlan 100
Switch(config-if)#exit
Switch(config)#interface
FastEthernet0/2
Switch(config-if)#switchport
access vlan 100
Switch(config-if)#exit
Switch(config)#interface
FastEthernet0/3
Switch(config-if)#switchport
access vlan 200
Switch(config-if)#exit
Switch(config)#interface
FastEthernet0/4
Switch(config-if)#switchport
access vlan 200
Switch(config-if)#exit
Switch(config)#interface
FastEthernet0/5
Switch(config-if)#switchport
mode trunk
Switch(config-if)#exit
Switch(config)#do wr
Building
configuration...
[OK]
Hasil Konfigurasi :
Test Ping dari PC0 ke PC1 , PC2, & PC3

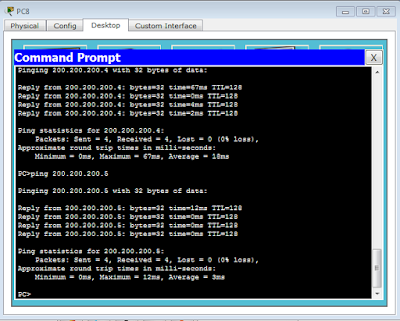

Test Ping dari PC8 ke PC5,PC6, & PC7
